型號 |
冷量(liàng) kcal/h |
進出 口徑 |
噴淋泵 | 風機 |

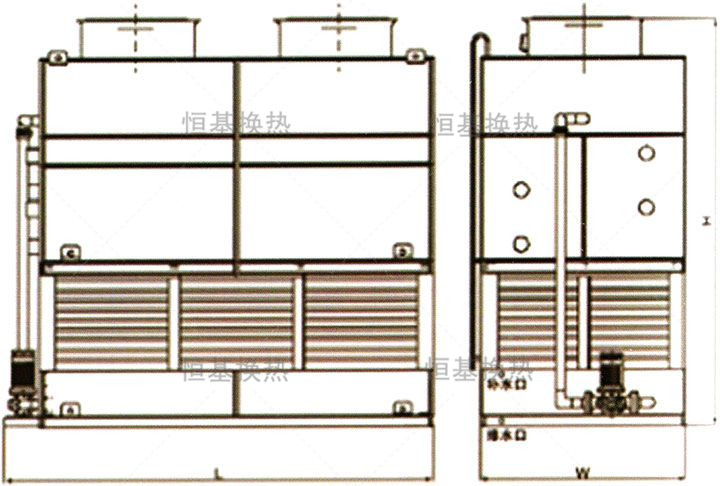

外形尺寸 長×寬(kuān)X高 |
空機(jī) 質量 Kg |
運行 質量 Kg |
||
kw | M3/h | kw | M3/h | ||||||
JBN-0 | 31100 | DN50 | 0.75 | 11 | 1.1 | 12000 | 1250×1000×1900 | 390 | 700 |
JBN-02 | 48000 | DN50 | 0.75 | 11 | 1.1 | 12000 | 1250×1000×1900 | 410 | 720 |
JBN-03 | 75000 | DN65 | 1.1 | 22 | 0.75×2 | 24000 | 1600×1000×1900 | 560 | 1060 |
JBN-04 | 110000 | DN65 | 1.1 | 22 | 0.75×2 | 24000 | 2000×1000×1900 | 700 | 1200 |
JBN-05 | 150000 | DN65 | 1.5 | 25 | 1.1×2 | 33600 | 2500×1250×2100 | 770 | 1750 |
JBN-06 | 180000 | DN65 | 1.5 | 25 | 1.1×2 | 33600 | 2500×1250×2100 | 865 | 1850 |
JBN-07 | 225000 | DN80 | 1.1 | 45 | 1.5×2 | 33600 | 2500×1250×2700 | 1500 | 3700 |
JBN-08 | 260000 | DN80 | 1.1 | 45 | 1.5×2 | 44000 | 2500×1250×2700 | 1580 | 3780 |
JBN-09 | 300000 | DN80 | 1.5 | 60 | 1.5×2 | 44000 | 2500×1500×2700 | 1660 | 3860 |
JBN-10 | 350000 | DN100 | 1.5 | 60 | 1.5×2 | 44000 | 2500×1500×2700 | 1900 | 4100 |
JBN-12 | 400000 | DN100 | 1.5 | 65 | 2.2×2 | 69200 | 2500×1500×3290 | 1980 | 4180 |
JBN-13 | 450000 | DN100 | 1.5 | 86 | 2.2×2 | 69200 | 2500×1500×3290 | 2060 | 4260 |
JBN-14 | 500000 | DN100 | 2.2 | 86 | 3×2 | 69200 | 3000×1800×3290 | 2200 | 5000 |
JBN-15 | 550000 | DN100 | 2.2 | 86 | 3×2 | 69200 | 3000×1800×3290 | 2480 | 5080 |
JBN-17 | 650000 | DN125 | 3 | 120 | 4×2 | 69200 | 3000×2000×3290 | 2780 | 6080 |
JBN-19 | 750000 | DN125 | 3 | 120 | 4×2 | 132000 | 3000×2000×3290 | 3000 | 6200 |
JBN-21 | 900000 | DN150 | 4 | 150 | 5.5×2 | 132000 | 4000×2000×4200 | 3280 | 7880 |
JBN-22 | 1000000 | DN150 | 4 | 150 | 5.5×2 | 132000 | 4000×2000×4200 | 3500 | 7960 |
JBN-24 | 1200000 | DN200 | 4 | 180 | 7.5×2 | 200000 | 4800×2300×4500 | 3900 | 8700 |
JBN-25 | 1300000 | DN200 | 4 | 180 | 7.5×2 | 200000 | 4800×2300×4500 | 4200 | 8800 |
JBN-26 | 1400000 | DN200 | 5.5 | 230 | 7.5×2 | 200000 | 5400×3000×4500 | 5000 | 9800 |
JBN-27 | 1500000 | DN200 | 5.5 | 230 | 7.5×2 | 200000 | 5400×3000×4500 | 5000 | 9800 |
JBN-28 | 1700000 | DN250 | 5.5 | 230 | 7.5×2 | 200000 | 5400×3000×4500 | 5300 | 11900 |
JBN-30 | 2000000 | DN250 | 4×2 | 360 | 11×2 | 250000 | 6000×3000×4500 | 5500 | 12300 |
JBN-32 | 2100000 | DN250 | 4×2 | 360 | 11×2 | 250000 | 6000×3000×4500 | 5860 | 13000 |
JBN-34 | 2500000 | DN250 | 4×2 | 360 | 11×2 | 250000 | 6000×3000×4900 | 6025 | 14600 |
JBN-36 | 2800000 | DN250 | 5.5×2 | 445 | 11×2 | 250000 | 6200×3200×5500 | 7000 | 17100 |
JBN-38 | 3000000 | DN300 | 5.5×2 | 445 | 11×2 | 250000 | 6200×3200×5500 | 7000 | 17100 |
